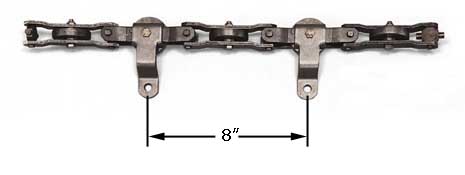

Series 300 ChainThe chain is made of uniformly heat-treated components. Although light in weight, it has an assembled tensile strength in excess of 7,500 pounds. Side and pendant links are made of high tensile steel and all chain is thoroughly inspected and lubricated before shipment. a. Chain is sold in 1′-0″ increments and shipped in lengths up to 50′-0″, weighs 3 pounds per foot and chain/load pitch is 8″.

Specifications
Chain/Load Pitch: 8″
Capacity: 100 lbs. per pendant, 150 lb./ft.
Chain Pull: 1000 lbs. recommended maximum
Tensile Strength: 7500 lbs.
Maximum Operating Temperature: 450°F
Weight: 3 lbs. per foot
